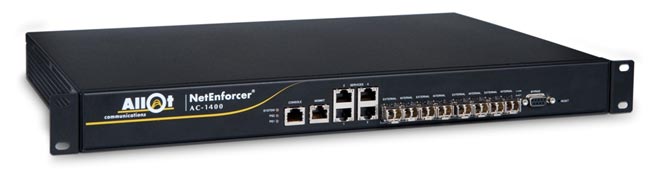

Allot NetEnforcer AC-1440
2 Gbps Bandwidth Management Device
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Allot NetEnforcer AC-1400 is designed to manage Internet traffic on multiple Ethernet links at speeds of up to 2 Gbps. Providing real-time monitoring, policy enforcement and traffic steering, this flexible device helps operators control bandwidth utilization and costs while ensuring quality of experience (QoE) for all network users.
Main Features:
- Throughput of 50, 100, 200, 400 Mbps, and 1 Gbps (full duplex) with real-time analytics and Quality of Service (QoS) management of up to 3.5 million concurrent IP flows
- High port density per unit:
- 8 x 1GE ports for network connectivity
- 4 x 1GE ports for connectivity to external services, cascading and high-availability
- IPv4/IPv6 dual stack subscriber support for flexible network configuration
- Powered by Allot's Dynamic Actionable Recognition Technology (DART) engine, which provides granular visibility of subscriber, application, device (including tethering), and network topology traffic
- DART's extensive signature library accurately identifies hundreds of Internet applications and protocols, including P2P, VoIP, streaming, gaming, instant messaging, web, and business applications
- Automated, web-based update keeps the signature library up to date with the latest developments
- Supports user-defined signatures based on HTTP attributes, as well as monitoring reports based on custom HTTP signatures
- Real-time analytics and automatic alarms enable fast and accurate troubleshooting with the ability to trigger corrective actions
- Works together with Allot Subscriber Management Platform (SMP) to provide real-time usage data for online and offline charging and subscriber policy management
- Policy-based traffic steering to external network and subscriber services
- Integrated URL filtering services block access to blacklisted and illegal websites, and allow subscribers to set up and manage their own safe browsing and anti-malware rules (See Allot WebSafe services)
- Integrated threat protection system prevents DNS blacklisting, isolates infected botnet hosts for clean-up, and surgically mitigates DDoS attacks (see Allot ServiceProtector)
- Managed by Allot NetXplorer centralized management system
- Fail-safe performance supported by external hardware bypass
Specifications:
Model Comparison:
Allot NetEnforcer AC-1400 is available in a versatile AC-1440 model, serving a range of network configurations and needs.
| Model Comparison | AC-1440 |
|---|---|
| Capacity | |
| Throughput | 2 Gbps (1 Gbps, full duplex) |
| Number of Connections/Flows | 1,750,000 / 3,500,000 |
| Number of Subscribers | 160,000 |
| Lines/Pipes/Virtual Channels | 512 / 40,000 / 80,000 |
| Interfaces and Connections | |
| Management Interface | 10/100BASE-T |
| Network Interfaces (Internal / External) | 8 x 1000BASE-SX/LX/ZX or 8 x 10/100/1000BASE-T (auto-negotiation) |
| Cascading/Service | 4 x 10/100/1000BASE-T (reserved for future use) |
| Console Port | Serial, RJ-45 Connector |
| DART: Dynamic Application Recognition Technology (examples) | |
| P2P | Including BitTorrent, eDonkey, Ares, Gnutella, Thunder, eMule, Vuze, Winny |
| VoIP and IM | Including Windows Live Messenger, SIP, Skype, Yahoo Messenger, GoogleTalk, Fring, WhatsApp, , STUN, ICQ, Viber, and QQ |
| Gaming | Including World of Warcraft, Final Fantasy, Guitar Hero, Second Life, QQ Games, Lineage, CounterStrike, Call of Duty, Apple Game Center |
| Web | Including HTTP, mobile, and social networking applications |
| Streaming | Including YouTube, RTMP, QQ live, PPStream, DailyMotion, HTTP streaming, HTTP audio, NetFlix, and Facebook streaming |
| File Transfer | Including FTP, HTTP file downloads, Apple App Store, Android Market |
| Networking Standards | |
| Traffic Encapsulation | Including L2TP, MPLS, PPPoE, and Teredo |
| IPv6 | IPv6 subscriber management available with Allot SMP |
| Product Options | |
| QoS Enforcement Levels | 50, 100, 200, 400 Mbps, and 1Gbps (full duplex) |
| Analytics (Monitoring and Reporting) | Real-time and Long-term |
| High Availability | Active redundancy (1:1, 1+1), Bypass |
| Asymmetric Traffic Handling | Yes |
| Full Integration with Network & Subscriber Services | |
| Allot Subscriber Management Platform (SMP) | For centralized creation, provisioning, and charging of per-subscriber services |
| Allot ServiceProtector | For DDoS/outbound spam detection and mitigation solutions |
| Allot WebSafe | For URL filtering solutions at the network level |
| Allot WebSafe Personal | For subscriber safe-browsing solutions (Parental Control; Anti-Malware) |
| Allot MediaSwift | For media caching and video acceleration solutions |
| Traffic Steering | For deployment of value-added services |
| Dimensions | |
| Size / Weight | Standard 1U by 19" rack mount / 5.2 kg (11.5 lb) |
| Dimensions / Operating Temp | 300mm x 440mm x 44mm (L x W x H) / 0°C to 50°C |
| Bypass Unit | External, 1U, 19" rack mount, 2.4 kg (5.3 lb) |
| Power | |
| Input (AC) | 100-240 VAC. 50/60Hz, 2A max |
| Input (DC) | -48V / -60V DC, 3.5A max |
| Power Supply Units | 2 (Load Sharing) |
| Redundancy for PSUs | 1 + 1 |
| Power Consumption / Heat Dissipation | 160W / 546 BTU/hour |
| Safety and Certifications | |
| Safety | UL 60950-1:2007; EN 60950-1:2006 / A11:2009; CAN/CSA-C22.2 No. 60950-1-07 |
| Emission | European Directives 2004/108/EC & LVD 73/23/ EEC, including |
