Overview:

Allot ServiceProtector ensures service continuity and guards network integrity against known and unknown threats. Through immediate identification of Denial of Service (DoS/DDoS) attacks, Zero Day attacks, worms, zombie and spambot behavior, ServiceProtector enables fast, surgical mitigation by blocking, limiting or isolating offending traffic while allowing legitimate traffic to flow.

Main Features:

  • Scalable, carrier-grade performance compatible with 1GE and 10GE networks
  • Synergistic behavioral detection technologies provide complete visibility of network service threats
    • Network Behavior Anomaly Detection (NBAD) identifies within seconds, DoS/DDoS, Zero Day attacks and other traffic anomalies impacting network performance
    • Host Behavior Anomaly Detection (HBAD) identifies subscriber zombie/ bot behavior (outgoing SPAM, DoS, worm propagation, port scanning) and is used to isolate, limit or block these subscribers before their activity impacts network services
  • Automatic capture of anomalous packets for signature generation and forensic analysis
  • Deep Packet Signatures created in real- time and within seconds, even for Zero Day attacks, reducing vulnerability and risk
  • Signatures applied to Allot NetEnforcer devices and Service Gateway platform enable fast mitigation of attacks and isolation of zombies
  • Supports automated or operator- initiated mitigation
  • Signatures can be applied to routers, firewalls, IPS, traffic shapers and traffic scrubbers to leverage existing investments
  • Transparent network deployment via network taps or port SPAN ensures no latency and no points of failure
  • Centralized configuration, management, storage, control and reporting from multi-user, web-based GUI and CLI

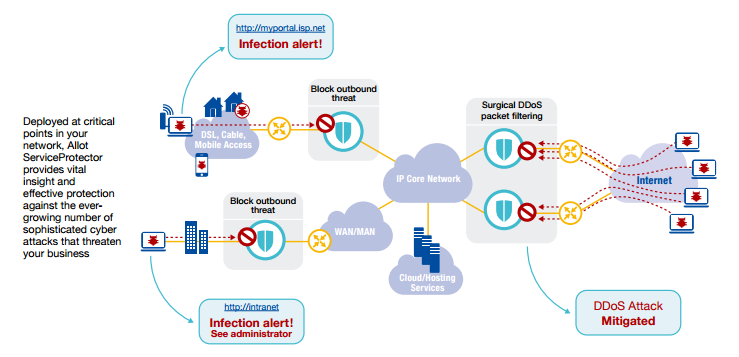

Deployment:

Service Protector

Model Comparison:



Allot ServiceProtector Specifications
Detection Method
Behavioral Detection Technology Network Behavior Anomaly Detection (NBAD)
Host Behavior Anomaly Detection (HBAD)
PredefinedsignaturesnotrequiredfordetectionofDoS/DDoS,worms,SPAMactivity
NBAD
Anomaly Detection Categories All varieties of TCP/IP traffic,includingTCP-based(withsubcategories),UDP,ICMP(with subcategories), fragmented packets, and all non-definedtypes.Thisensurescomplete coverage of all varieties of known and unknown network-level attacks such as DoS/DDoS and Zero Day worm attacks.
Anomaly Detection Speed Typically 5-30 seconds
Signature Extraction Speed Typically 10-20 seconds
Packet Signatures Encompasses entire range of packet information from Layer 2 to Layer 7, including TCP/IP headers, full payload, MAC addresses, VLAN tags and MPLS labels
Real-time Signatures Signatures are created in real-time without using a predefineddatabase
HBAD
Anomaly Detection Categories Internal hosts that generate outgoing: SPAM, DoS attacks, worm and hacker probing
Anomaly Detection Speed Typically 3-5 minutes
Traffic Data
Collection Method Fiber-optic tap or port/mirror SPAN
TrafficMeta-Data(for behavioral modeling and anomaly detection) Extracted by parsing directly from every packet
Packet Capture Automated (NBAD) and ad hoc from GUI
System Outputs
Filter Formats Allot NetXplorer, SNORT, Cisco ACL, Cisco PIX, Fortinet, TCPDUMP
Alerting/Notification Email, SNMP trap, syslog
Customizable Event Notification Rich set of user-configurableparameters
Mitigation Via Allot NetEnforcer devices and Allot NetXplorer management system, Redback BRAS
Allot Product Compatibility
NetXplorer Centralized Management Server MS Windows and Linux platforms
NetEnforcer AC-1000 and AC-2500 models
Service Gateway SG-Omega Series and future platforms. SP-Sensor deployed as a blade in the Service Gateway chassis.
ServiceProtector Sensor
Interface Types
Monitoring Interfaces 4 x 10/100/1000BASE-T ports
4 x 1 Gigabit Ethernet (1000BASE-SX/LX) ports
2 x 10 Gigabit Ethernet (10GBASE-SR/LR) ports
Management Interface 10/100/1000BASE-T, dedicated management interface
Throughput
On 4 x 10/100/1000BASE-T ports or on 1000BASE-SX/LX ports 4 Gbps (1 Gbps per port), handles 2 full duplex GE fiberlinks
On 2 x 10 GBASE-SR/LR ports 10 Gbps (5 Gbps per port), handles 1 full duplex 10GE link
Connection Rates 5.5 million concurrent connections; 98,000 connections per second
TrafficGroups 30 groups per Sensor
Size Standard 2U by 19" rack mount, IBM x3650 server
ServiceProtector Controller
Interface Types
Management Interface 10/100/1000BASE-T, dedicated management interface
Capacity
Max Sensors per Controller 16
TrafficGroups 400 sensor-groups per Controller
Dimensions
Size Standard 2U by 19" rack mount, IBM x3650 server

Documentation:

PDF File
Allot ServiveProtector Data Sheet (.PDF)
